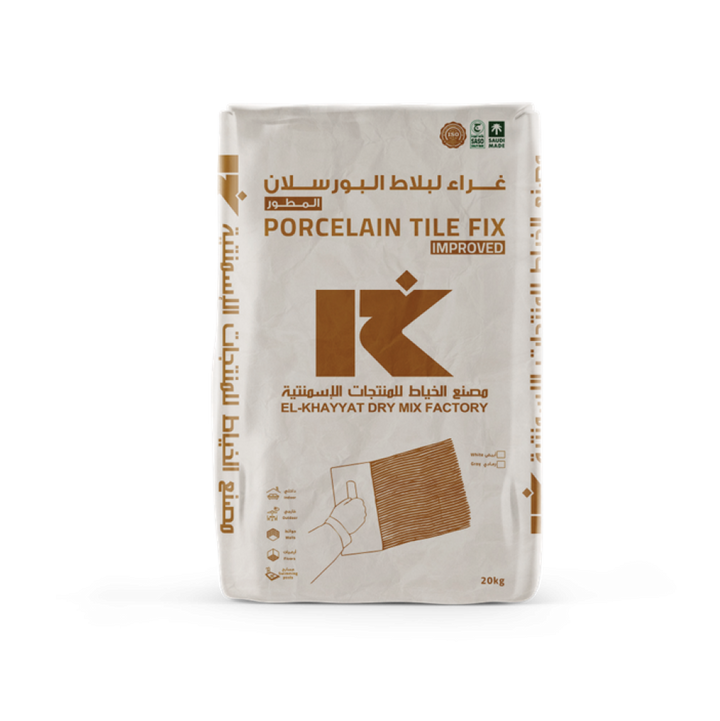

Tailor's Porcelain Glue C2

Porcelain Tile Fix C2TES1

High quality, Flexible, ready to mix, Walls & Floors tile adhesive.

Description:

Porcelain Tile Fix is ​​cement based high quality, modified polymer, ready mixed, flexible, thin set tile adhesive mortar in powder form.

Porcelain Tile Fix requires the addition of water on site. Porcelain Tile Fix is ​​ideal for fixing floors and wall tiles especially in submerged areas such as swimming pools, water tanks, kitchens, bathrooms, shower rooms and where heavy traffic is present in private and public buildings. Porcelain Tile Fix is ​​suitable for fixing marble, porcelain, ceramic and mosaic tiles, thin bricks up to 50 kg/ m2 weight.

The suitable substrates are concrete, cement base plastered walls and floor screeds, gypsum, cement plaster boards, block walls and light weight blocks. For extreme conditions. Porcelain Tile Fix can also be used for fixing new tiles on old glazed ceramic walls and floors tiles.floors tiles. Suitable for fixing large tiles

Base

High strength hydraulic cement, graded clean calcium carbonate and selected additives

Appearance

White or gray Powder

Aggregate Size

1.0 mm Max

Open Time @ 25°C

Approx 30 minutes.

Adjustability @ 25°C

20-25 Minutes

Pot Life @ 25°C

Approx. 3 Hours

Final Setting @ 25°C

Approx. 6 Hours

Sag Resistance

(EN 1308)

≤ 0.5mm

Compressive Strength@28da

(ASTM C349)

≥ 10 MPA

Flexural Strength@28days

(ASTM C348)

≥ 4 MPA

Bond Strength

@28days (EN 1348)

≥ 1.2 MPA

Mixed Density

Approx. 1.6 kg/lit. ±0.05 Kg

Open to traffic

24 hours

Minimum Application

Temperature

5°C

Transverse Deformation

(EN12002)

S1

Surface Preparation

Cement based walls and screeds should be left to cure for at least 14 days prior to application of Porcelain Tile Fix.

Rough or uneven concrete surfaces should be made flat and smooth. All substrates should be in a good and strong condition. All substrates should also be clean and free from any loose particles, dust, oil, grease, the curing agents, or paint. Tiles to be fixed should be clean and free from any surface contamination. If the surface is dry and in hot weather, pre-wet it prior to the application of Porcelain Tile Fix without leaving excess water.

Application procedures

Application procedures

-The entire contents of the bag should be mixed together with water, in one container using a hand drill equipped with a mixing blade or high shear stationary mixer.

-Partial small amounts may be mixed manually, with a trowel, or other suitable hand mixing tools.

-Add 5.5 - 6.5 liters of fresh, cool, clean water in one deep container. Then, add the contents of the 20 kg bag gradually while mixing till the mixture is uniform and free of lumps. Leave the mixed material for 10 minutes and remix for one minute.

-Porcelain Tile Fix should be applied while the mortar is fresh and workable (within Pot Life).

Apply Porcelain Tile Fix to the prepared surface using the flat side of the trowel while pressing firmly into the prepared substrate.

-Use suitable notched trowel to ensure full bedding of the tile with 2 – 3 mm minimum uniform thickness.

-Spread Porcelain Tile Fix in areas not more than 1.0 m2.

-Press tiles firmly into place and gently adjust the level by twisting slightly within 15 minutes ensuring proper transfer of 85% of the mortar to the back of the tiles.

-Leave tiles to dry for at least 24 hours before starting grouting. Use Tile Grout according to joint width.

Composition

Porcelain Tile Fix is ​​manufactured from carefully selected raw materials which include a blend of special high strength hydraulic binders, selected well graded fillers, and special additives to enhance workability and bonding characteristics.

Standards

Porcelain Tile Fix is ​​formulated to comply with ANSI 118.4 and EN 12004 standards.

SASO EN 12004:2021 (C2TES1)

Mix Proportion

Approx. 5.5-6.5 liters of water/ 20 kg bag.

Coverage

3 – 5 kg/m2

(Coverage rate may vary depending on surface condition, the type of towel used).

Characteristics

-Easy to use and apply. Only requires the addition of water on site for ease of use.

- Raw materials are selected according to the highest quality control standards.

- Excellent mixing and workability characteristics.

- The simplicity of usage and application gives very high productivity rates.

- Exact mixing ratios and homogeneity of the blend, due to the factory fully computerized production process.

- Excellent water and sag resistance.

- Excellent bonding characteristics to plastered substrates and fair face concrete.

-Flexible. Very good resistance to substrate vibrations.

- Long open time and pot life.

Important Notes

- Do not apply Porcelain Tile Fix on movement joints or on dynamic cracked plastered walls. Expansion joints should be included as per the substrate design and carried out through tile applications.

- Using cold water for mixing allows longer pot life and improved workability.

- Use Porcelain Tile Fix White when fixing white or light color stone.

- Porous surfaces such as gypsum plaster boards should be sealed prior to tile installation using Porcelain Tile Fix.

- Do not apply Porcelain Tile Fix on metal surfaces. Use plastic spacers to leave the required joint width around each tile according to pattern and architecture recommendations.

- Leave 2mm minimum joint width around tiles.

Storage

Shelf life is 12 months from manufacturing date, in a dry covered storage area.

Health and Safety

While using the product, gloves and goggles should be worn. Splashes to skin or eyes should be washed with clean water, in case of prolonged irritation, seek medical advice.

• Marble is a natural product and variations in colors and veins are possible. Color coordination is the responsibility of the installer.
• All parts must be checked before installation in terms of color and size.
• No claim is allowed, regardless of the defect, after the goods have been installed.
• We recommend that the buyer take an additional 7% quantity, for fear that the quantity will run out later or that new merchandise will arrive that is different in color and size.
• It is recommended to use a good quality, clean type of glue and mortar.

Calculating the amount of tiles for a room must be known

1) Calculate the area of ​​the rooms (length * width)

2) Determine the dimensions of the slab used.

3) The required quantity of ceramic tiles = the area of ​​the room divided by the area of ​​one tile

Taking into account an increase of 10% to 20% to avoid shortages in cutting and crushing operations.

Calculating the quantities of ceramic tiles required for bathrooms and kitchens:

The method of calculating rooms differs from calculating bathrooms and kitchens, because in this case the walls are calculated as follows:

First wall = width * height

And the second, third and fourth as well..

Then the total result of the walls is divided by the area of ​​each tile in case the size of the wall tiles is different from the size of the floor tiles.

How to calculate the weight (cyclo):

What is the ministry, what is its importance and reasons for using it?

Floor skirting: It is a strip of tiles that controls the degree of harmony between the floors and the walls. A good choice of skirting highlights the color of the wall and the floor and adds a touch of elegance and taste. The variety of its shapes and colors gives a great opportunity to control the space of the place because it separates the floors from the walls. For example, wide skirting boards with light colors give a sense of spaciousness in narrow spaces, and dark, chunky skirting boards give a sense of warmth in wide spaces. They may have different shapes, plain, patterned, or the same as the floor tiles.

Different methods of calculating the burden:

The weight calculation depends on the size of the ceramic tile, as the height of one tile is 10 cm. For example, to calculate the weight for a 40x40 tile, it is as follows:

If the height of the skirting board is 10 cm and the tiles are 40x40, this will give us 4 pieces, each piece is about 40 cm wide, meaning that one tile will give us 160 cm, or 1.60 meters. Having calculated the total area of ​​the place in advance, the total area of ​​the room is divided by 1.60 meters.

Example: A room with an area of ​​12 square meters would be 12/1.60=7.5. Since the ceramic tiles in the tile are 40*40 (6 tiles equal 1.20), the room needs 2 square meters with a lot of ceramic tiles like this.

In the same way, we calculate if the tile is 60*60 or any other dimensions.

Some notes to take into account when calculating ceramic quantities:

Pay attention to the colors when calculating quantities. For example, there are walls that contain two different colors of ceramic, and they can also contain different tiles, called decorative tiles. The quantity is calculated based on the percentage of the color, for example, half, or one-third and two-thirds, and so on.

Also in the floors we must pay attention to the calculation process.

Choosing porcelain flooring measurements:

• For large open halls, the preferred tile size is 120*120. To browse our selection of this size, click here.
• Rectangular halls are preferred, 60*120. To browse our selection of this size, click here.
• For rooms with an area of ​​4*5, 60*60 is preferred. Click here.
